Roller feeder, sheet coil making machine, Dongguan stamping peripheral equipment
In the stamping automatic production line, the roller feeder usually appears in the third process. After the material roll is unrolled by the material frame and the leveling machine is leveled, it is sent to the punching die by the roller feeder and stepped into the punching die. Finally, the punching machine is used. Stamped into the final product.
As the last feeding process for automated equipment, the work of the roller feeder is directly related to the final product quality. Therefore, in order to achieve high-quality stamping processing, in addition to the purchase of a good roller feeder, we must ensure efficient and high-quality operation of the roller feeder.
The high quality and high performance of the roller feeder depend on the manufacturer's precision manufacturing, and whether it can ensure efficient, stable and safe operation after long-term operation requires careful and careful maintenance and maintenance by the operator.
Because the equipment manufactured by Seiko will inevitably have wear and failure after long-term operation, and maintenance can fundamentally eliminate such hidden dangers, the operator of the feeder must pay special attention to maintenance and maintenance.
As the largest feeder manufacturer in China, Ruihui Machinery Co., Ltd. not only provides customers with precision-made feeder equipment, but also provides professional and comprehensive operation, maintenance and maintenance for each customer who purchases Ruihui feeder equipment. Knowledge training, and regular return visits to maintain value-added services to ensure that the feeder equipment purchased by customers can bring maximum economic benefits to customers.
Specification:
| Model | MAC2-400 | MAC2-500 | MAC2-600 | MAC2-800 |
| Stock Width(mm) | 50-400 | 50-500 | 50-600 | 50-800 |
| Stock Thickness(mm) | 0.3~3.2 | 0.3-3.2 | 0.3-3.2 | -3.2 |
| Max.Coil Weight(kg) | 3000 | 3000 | 3000 | 5000 | 5000 | 7000 |
| Max.Coil O.D.(mm) | 1200 | 1200 | 1200 | |
| Coil I.D.(mm) | 8 | 8 | 508 | 508 |
| Feed Length(mm) | ~500* | ~500* | ~500* | ~500* |
| Max. Line Speed(m/min) | 16-24 | 16-24 | 16-24 | 16-24 |
| Work Roll Number(pieces) | upper 6
lower 5 | upper 6
lower 5 | upper 6
lower 5 | upper 6
lower 5 |
| Feed Roll Number(set) | 1 | 1 | 1 | 1 |
| Main Motor(kw) | AC2.9 | AC2.9 | AC4.4 | AC4.4 |
| Mandrel Expansion | hydraulic | hydraulic | hydraulic | hydraulic |
| Reel Motor(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 |
| Power(V) | 3 Phase 220V/380V/50HZ |
| Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 |
Straigtening performance:
| tock Thicknees (mm) | Stock Width (mm) |
| 0.3 | 400 | 500 | 600 | 800 |
| 0.4 |
| 0.6 |
| 0.8 |
| 1.0 |
| 1.2 |
| 1.4 |
| 1.6 | 470 | 470 |
| 1.8 | 400 | 400 |
| 2.0 | 360 | 360 |
| 2.3 | 300 | 300 | 300 | 300 |
| 2.5 | 230 | 230 | 230 | 230 |
| 2.8 | 150 | 150 | 150 | 150 |
| 3.2 | 110 | 110 | 110 | 110 |
*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
Product Tags:
|
|

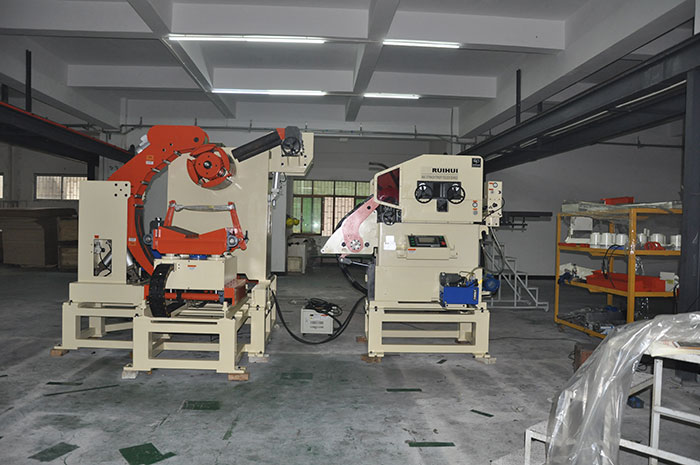

Sheet Coil Making Roller Straightening Machine Stamping Peripheral Equipment Images
|
