Metal Punching Processing Press Feeding Equipment Automatic Stamping Peripheral

Name: Metal Punching Processing Press Feeding Equipment Automatic Stamping Peripheral
Brand: RUIHUI
Price: 1 USD

China Metal Punching Processing Press Feeding Equipment Automatic Stamping Peripheral wholesale

Brand Name : RUIHUI

Certification : CE, ISO certification

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 Sets Per Month

Delivery Time : 30 work days

Packaging Details : Wooden Box or Vacuum Packing

Stock Width(mm) : 70-1000

Stock Thickness(mm) : 0.6-6.0

Line Speed(m/min) : 16~24

Coil Weight(Kg) : 7000

Work Roll Number(Pcs) : upper 6/lower 5

Main Motor(Kw) : AC 11.0

Warranty Period : 12 Months

Max.Coil O.D.(mm) : 1400

Coil I.D.(mm) : 508

Feed Length(mm) : ~500*

Mandrel Expansion : Hydrauilc

Reel Motor(kw) : 2.2

Operating Air(Mpa) : 0.49

Contact Now

Metal punching processing, feeder feeding speed, automatic stamping peripheral equipment

The PLC program sets the number of conversion pulses on the touch screen.

The PLC calculates the number of pulses sent to the servo driver according to the set length. The number of set revolution pulses can be expressed by the following formula:

The PLC output uses a floating point algorithm, and the input parameters must be in floating point format.
The high-speed pulse output command mid-pulse setting must be BIN number, so finally through the FIXL, the instruction converts the calculated number of pulses into the B1N number format. The number of servo drive electronic gears is set to 5.

Pulse number to actual length

In order to let the operator better understand the working condition of the feeder, real-time display of the feeding length is very necessary.

The method is to read the actual pulse number of the PLC, and the multi-faceted hand is converted into the actual length value and displayed on the touch screen. The actual number of pulses can be expressed by the following formula:

Feed speed to pulse frequency

Metal Punching Processing Press Feeding Equipment Automatic Stamping Peripheral

Feeding speed requirements are different for workpieces of different lengths; longer workpieces require higher feed speeds, otherwise they will conflict with other equipment.

For shorter workpieces, a lower feed rate can be chosen to help protect the motor. Therefore, it is necessary to read the maximum speed from the touch screen multiplied by the set percentage, which is the feeder speed, and then convert it into a pulse frequency.

Pulse frequency transfer rate

While the feed length is displayed on the touch screen in real time, the display of the feed speed is also very necessary by reading the pulse frequency emitted by the PLC and dividing it by the maximum speed, which is the display percentage.

Specifications:

Model	MAC4-600F	MAC4-800F	MAC4-1000F	MAC4-1300F
Stock Width(mm)	70~600	70~800	70~1000	70~1300
Stock Thickness(mm)	0.6~6.0	0.6~6.0	0.6~6.0	0.6~6.0
Max.Coil Weight(kg)	5000	5000	7000	10000
Max.Coil O.D.(mm)	1400	1400	1400	1400
Coil I.D.(mm)	508	508	508	508
Feed Length(mm)	~500*	~500*	~500*	~500*
Max.Line Speed(m/min)	16~24	16~24	16~24	16~24
Work Roll Number(piece)	upper 6/lower 5	upper 6/lower 5	upper 6/lower 5	upper 6/lower 5
Feed Roll number(set)	1	1	1	1
Main Motor	AC7.5	AC11.0	AC11.0	AC11.0
Mandrel Expansion	Hydrauilc	Hydrauilc	Hydrauilc	Hydrauilc
Reel Motor(kw)	2.2	2.2	3.7	7.5
Power(v)	3 Phase 220V/380V/50HZ
Operating Air(Mpa)	0.49	0.49	0.49	0.49

Straightening Performance:

Model		MAC4-600F	MAC4-800F	MAC4-1000F	MAC4-1300F
Stock Thickness (mm)	0.8~2.3	600	800	1000	1300
	2.8		800	933	933
	3.2		714	714	714
	4.0	457	457	457	457
	4.5	361	361	361	361
	5.0	293	293	293	293
	6.0	203	203	203	203

Products:

Metal Punching Processing Press Feeding Equipment Automatic Stamping Peripheral

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

2. After-Sales service:We have an efficient team to meet 24*7 all day service.

3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

4. Engineers can provide service machinery overseas.

Product Tags:

coil feeder straightener

coil handling equipment

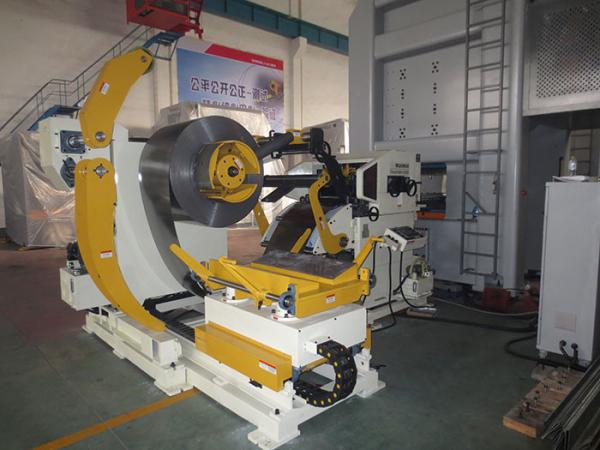

Metal Punching Processing Press Feeding Equipment Automatic Stamping Peripheral Images
