Air Punching And Feeding Straightening Machine Automatic Stamping High Precision

Name: Air Punching And Feeding Straightening Machine Automatic Stamping High Precision
Brand: RUIHUI
Price: 1 USD

China Air Punching And Feeding Straightening Machine Automatic Stamping High Precision wholesale

Brand Name : RUIHUI

Certification : CE, ISO certification

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 Sets Per Month

Delivery Time : 30 work days

Packaging Details : Wooden Box or Vacuum Packing

Stock Width(mm) : 70-1000

Stock Thickness(mm) : 0.6-6.0

Line Speed(m/min) : 16~24

Coil Weight(Kg) : 7000

Work Roll Number(Pcs) : upper 6/lower 5

Main Motor(Kw) : AC 11.0

Warranty Period : 12 Months

Max.Coil O.D.(mm) : 1400

Coil I.D.(mm) : 508

Feed Length(mm) : ~500*

Mandrel Expansion : Hydrauilc

Reel Motor(kw) : 2.2

Operating Air(Mpa) : 0.49

Contact Now

Air feeder punching and feeding equipment, automatic stamping feeding precision, punching processing

Air feeder principle and advantages and disadvantages

The air feeder is the earliest feeding device used in the stamping industry. Its principle is to use the air source as the power.

The material is clamped by the cylinder and fed by the telescopic stroke of the cylinder. The adjustment of the feed length is controlled by the length of the stroke of the cylinder.

Air feeder advantages: easy to operate, easy to install, affordable, and can achieve automatic stamping feeding equipment at the lowest price. In actual production, it is mainly used for feeding of stamping products with low precision and fast speed.

Disadvantages of air feeder: easy to damage materials, O-ring wear has an impact on the feeding accuracy.

The length of the air feeder needs to be fed. Firstly, loosen the fixed fine adjustment screw under the stopper of the feeder. Remove the length fine adjustment screw, then load or unload the air feeder to open the spacer to increase or decrease the feed ruler.

If you need to connect to any size, you must adjust the fine adjustment screw of the feed length, but when the fine adjustment screw rotates clockwise: the air feeder feed length is shorter.

If the fine adjustment screw rotates counterclockwise, the air feeder feed length is longer, but the fine adjustment screw rotates counterclockwise to make the feed length longer, but the fine adjustment screw rotates one turn and its feed distance is 1mm.

The feed length fine adjustment screw must be removed before removing the air feeder spacer ring. The more the spacer ring is removed, the longer the feed length.

Air Punching And Feeding Straightening Machine Automatic Stamping High Precision

Specifications:

Model	MAC4-600F	MAC4-800F	MAC4-1000F	MAC4-1300F
Stock Width(mm)	70~600	70~800	70~1000	70~1300
Stock Thickness(mm)	0.6~6.0	0.6~6.0	0.6~6.0	0.6~6.0
Max.Coil Weight(kg)	5000	5000	7000	10000
Max.Coil O.D.(mm)	1400	1400	1400	1400
Coil I.D.(mm)	508	508	508	508
Feed Length(mm)	~500*	~500*	~500*	~500*
Max.Line Speed(m/min)	16~24	16~24	16~24	16~24
Work Roll Number(piece)	upper 6/lower 5	upper 6/lower 5	upper 6/lower 5	upper 6/lower 5
Feed Roll number(set)	1	1	1	1
Main Motor	AC7.5	AC11.0	AC11.0	AC11.0
Mandrel Expansion	Hydrauilc	Hydrauilc	Hydrauilc	Hydrauilc
Reel Motor(kw)	2.2	2.2	3.7	7.5
Power(v)	3 Phase 220V/380V/50HZ
Operating Air(Mpa)	0.49	0.49	0.49	0.49

Straightening Performance:

Model		MAC4-600F	MAC4-800F	MAC4-1000F	MAC4-1300F
Stock Thickness (mm)	0.8~2.3	600	800	1000	1300
	2.8		800	933	933
	3.2		714	714	714
	4.0	457	457	457	457
	4.5	361	361	361	361
	5.0	293	293	293	293
	6.0	203	203	203	203

Products:

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.

Product Tags:

coil feeder straightener

coil handling equipment

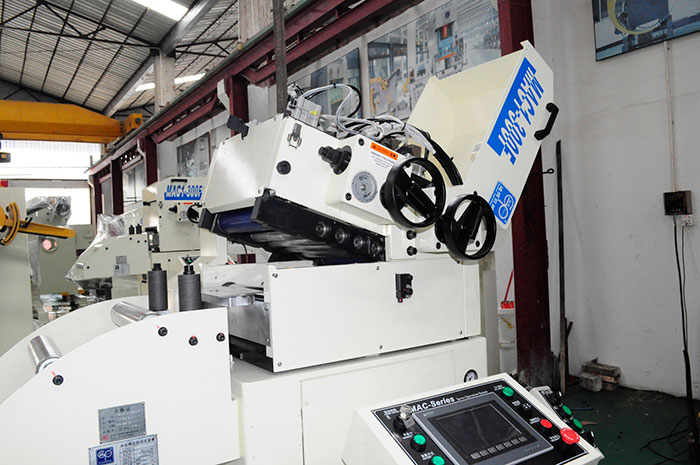

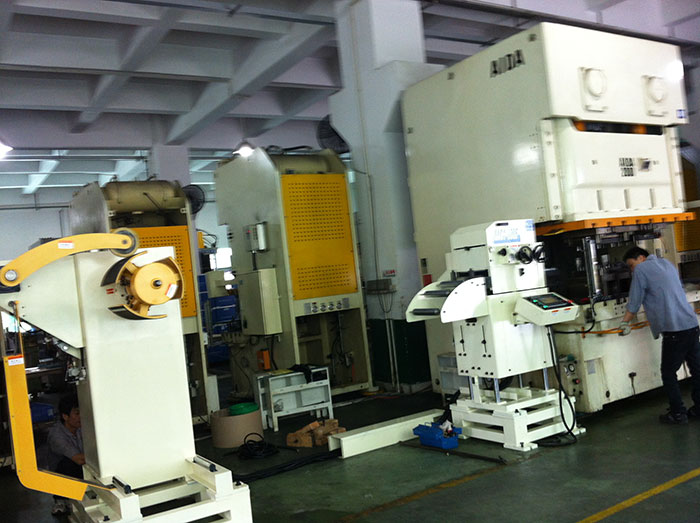

Air Punching And Feeding Straightening Machine Automatic Stamping High Precision Images
