Air Feeder Sheet Metal Decoiler Stamping , Automatic Roll Feeder Machine

GUANGDONG RUIHUI INTELLIGENT TECHNOLOGY CO., LTD.

Air Feeder Sheet Metal Decoiler Stamping , Automatic Roll Feeder Machine

Brand Name : RUIHUI

Certification : CE, ISO certification

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 Sets Per Month

Delivery Time : 30 work days

Packaging Details : Wooden Box or Vacuum Packing

Model Number : MAC3-400

Price : Negotiable

Stock Width(mm) : 50-400

Stock Thickness(mm) : 0.3-4.5

Line Speed(m/min) : 16~24

Coil Weight(Kg) : 5000

Main Motor(Kw) : AC 4.4

Warranty Period : 12 Months

Trademark : RUIHUI

Max.Coil O.D.(mm) : 1400

Function : Electric Hydraulic Hole Puncher

Type : Straightener Feeder & Uncoiler

Use : Sheet

After-sales Service Provided : Engineers available to service machinery overseas

Contact Now

Air feeder, sheet metal stamping, Dongguan Ruihui automatic roll feeder

At present, most of the punching and forming processes for rubber magnetic sheets are single-punching processes. The processing method is to first set the positioning pins on the punching mold, and then insert a piece of rubber magnetic sheet into the positioning pin, and the operator uses both hands. At the same time, press the punch start button to perform punching. After the punching is completed, the product is taken out from the mold, and another piece of rubber magnetic sheet is caught in the positioning groove or the positioning pin for the next punching.

Although the punching process can ensure the safety of personnel, the production efficiency is extremely low. Since the rubber magnetic sheet needs to be punched by a sheet shape, the proportion of the edge material is too large, and the input of the production cost is increased.

The air feeder presses and releases the floating rod through the reciprocating motion of the punching slider, so that the floating rod transmits the signal of pressing and releasing to the time relay and controls the driving device, thereby realizing continuous automatic feeding, thereby effectively Instead of pure manual feeding, it not only avoids the various drawbacks and unsafe factors of personnel operation, but also greatly reduces the labor intensity of operators.

The stamping production efficiency has been significantly improved. Since the automatic feeding by the air feeder can achieve accurate positioning and equidistant feeding, the production of the edge material can be reduced during the die cutting process, which not only improves the material utilization rate, but also improves the material utilization rate. It saves stamping production costs.

In actual use, the rubber magnetic sheet is first fed by the air feeder pallet, sequentially passes through the stopper wheel, the moving splint and the fixed clamping plate, and is placed on the work table on one side of the punch slider, so that the punch slider can punch it Cut; properly adjust the air feeder stopper wheel to position the rubber magnetic sheet.

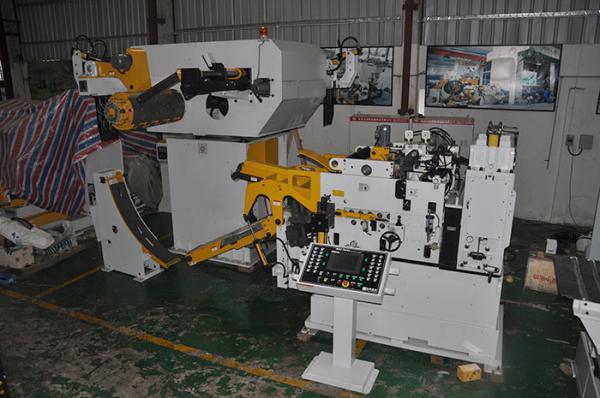

Air Feeder Sheet Metal Decoiler Stamping , Automatic Roll Feeder Machine

Air Feeder Sheet Metal Decoiler Stamping , Automatic Roll Feeder Machine

Specification:

Model MAC2-400 MAC2-500 MAC2-600 MAC2-800
Stock Width(mm) 50-400 50-500 50-600 50-800
Stock Thickness(mm) 0.3~3.2 0.3-3.2 0.3-3.2 -3.2
Max.Coil Weight(kg) 3000 3000 3000 5000 5000 7000
Max.Coil O.D.(mm) 1200 1200 1200
Coil I.D.(mm) 8 8 508 508
Feed Length(mm) ~500* ~500* ~500* ~500*
Max. Line Speed(m/min) 16-24 16-24 16-24 16-24
Work Roll Number(pieces) upper 6
lower 5
upper 6
lower 5
upper 6
lower 5
upper 6
lower 5
Feed Roll Number(set) 1 1 1 1
Main Motor(kw) AC2.9 AC2.9 AC4.4 AC4.4
Mandrel Expansion hydraulic hydraulic hydraulic hydraulic
Reel Motor(kw) 1.5 1.5 1.5 2.2 2.2 3.7
Power(V) 3 Phase 220V/380V/50HZ
Operating Air(Mpa) 0.49 0.49 0.49 0.49


Straigtening performance:

tock Thicknees (mm) Stock Width (mm)
0.3 400 500 600 800
0.4
0.6
0.8
1.0
1.2
1.4
1.6 470 470
1.8 400 400
2.0 360 360
2.3 300 300 300 300
2.5 230 230 230 230
2.8 150 150 150 150
3.2 110 110 110 110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
Air Feeder Sheet Metal Decoiler Stamping , Automatic Roll Feeder Machine
Air Feeder Sheet Metal Decoiler Stamping , Automatic Roll Feeder Machine

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
